Dilli Darshan: Mehrauli

Mehrauli is a large urban village that grew around the shrine of the 13th c. Sufi saint Bakhtiyar Kaki, much like Nizamuddin grew around the shrine of Nizamuddin Auliya (also 13th c. though a little later than Bakhtiyar Kaki). Kaki’s shrine was just outside the walls of Lal Kot, the fortified city within which the Qutb Minar is situated, and Mehrauli has grown right up to the edge of the now ruined fortifications.

Just like at Nizamuddin, innumerable tombs and graves were built around Bakhtiyar Kaki’s Dargah, though probably not as many as at Nizamuddin, and this dargah is also still an active Sufi pilgrimage site (though, you guessed it, not as active as Nizamuddin)!

Since it is located just outside Lal Kot, there are many structures in and around Mehrauli that date back to the 13th c. The Mehrauli Archaeological Park, which borders the eastern edge of Mehrauli village, is a trove of Lodhi-era mosques from the 15th c and early 16th c. And since the later Mughal rulers used Mehrauli as a getaway from the hubbub of urban life at Shahjahanabad (where the Mughal court was located), as did some of the British, there are many 18th c. and 19th c. structures and retrofits from late-Mughal and early-British times. Chief among these are Zafar Mahal, which the Mughals used as a palace, and Thomas Metcalf’s personal palace/countryhouse near the Qutb Minar that he called Dilkusha (heart pleasing).

All this means that Mehrauli has a smorgasbord of buildings from Delhi’s different historical periods, a large urban village to explore that contain a dargah and palace, forest lands surrounding the village that hide a plethora of ancient buildings, and is overall quite an interesting place to scout around.

Bakhtiyar Kaki’s Dargah

Kaki’s Dargah is in the middle of Mehrauli, and the various adjunt graves and tombs around Kaki’s own tomb occupy a large contiguous “sacred” space (i.e. you have to take your shoes off) within the village. There is a Naubat Khana (16th c.) some distance away from the dargah complex, which implies that there must have been a large walled compound around the dargah at some point.

The Naubat Khana now consists of two “towers” (the connecting portion must have fallen or been broken), one on either side of the dargah’s northern approach

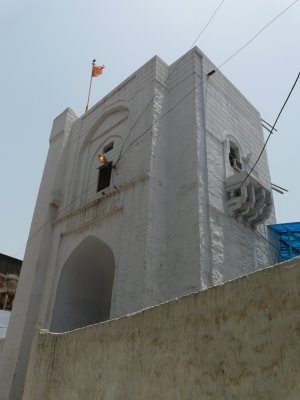

… one of which has been taken over by a Gurudwara (and whitewashed)

The Gurudwara peeping through from behind the Naubat Khana tower

The other Naubat Khana tower, with present day buildings built right upto it

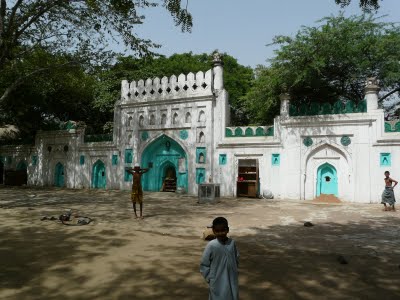

The current northern gateway to the dargah complex, with devotees and shops selling devotee paraphernalia. I went to the dargah on a Thursday, the most crowded day to visit a Sufi shrine, and have a separate post with more images of activity at the dargah.

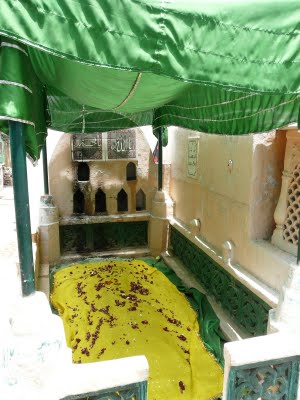

A side shrine (also of a holy man/devotee of Kaki’s) within the dargah complex

A gateway to Kaki’s shrine within the complex

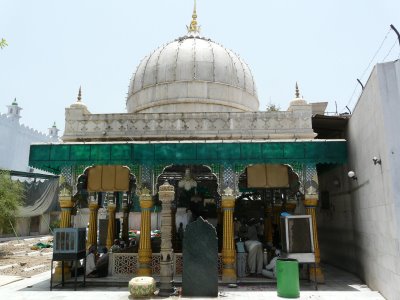

Bakhtiyar Kaki’s shrine

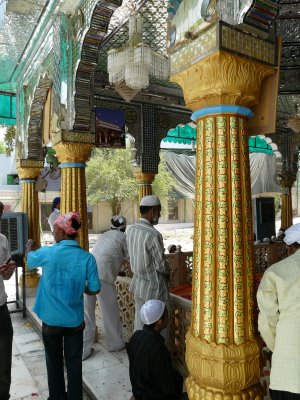

… with gold painted columns …

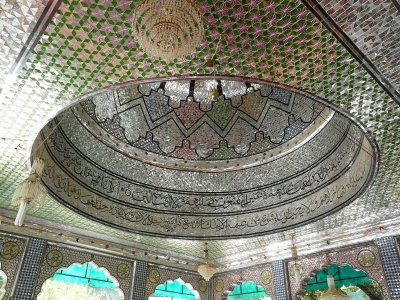

… and shimmering glass tile covered ceiling!

From further away, the marble dome reveals the tomb’s late-Mughal lineage (as do the shape of the columns and interconnecting arches, but not their decorations). The high wall capped with barbed wire (in the image below) very abruptly separates the shrine from the Mughal Zafar Mahal and Moti Masjid, discussed later in this post.

Kaki’s tomb from it’s adjoining courtyard

More graves within the dargah complex

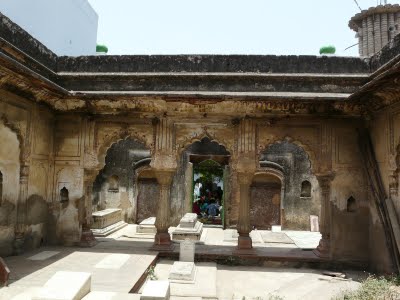

The entrance to a walled courtyard containing the graves from one family. The architecture is late-Mughal

The same courtyard from inside

Zafar Mahal

This was the palace that the later Mughals used as a getaway from Shahjahanabad. It’s not very big as Mughal palaces go, signifying the decline of the Mughal empire in the 18th and 19th c, though the royal family must have used other structures as well. The palace was built adjacent to Bakhtiyar Kaki’s shrine, with the Moti Masjid mosque placed right next to the shrine as a private mosque for the royal family. The tall wall from the image above that so abruptly divides the dargah from the palace is a modern addition that was built to separate the two compounds, isolating the archaeologically important palace from dargah visitors. In doing this however, Moti Masjid has now become part of the palace complex, and is no longer accessible from Kaki’s shrine.

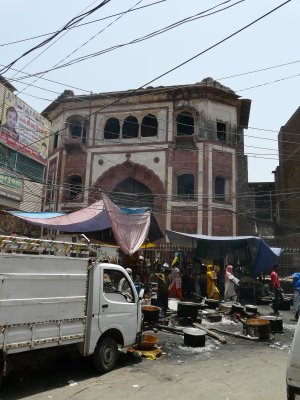

Entrance to Zafar Mahal. The cooking activity in front of the gateway is for dargah visitors

View across Zafar Mahal, with the triple dome of Moti Masjid in the middle distance, and the single dome of Kaki’s tomb right behind that

View of Mehrauli’s skyline from Zafar Mahal

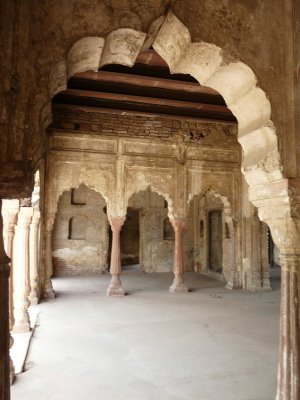

Room above Zafar Mahal entrance gateway

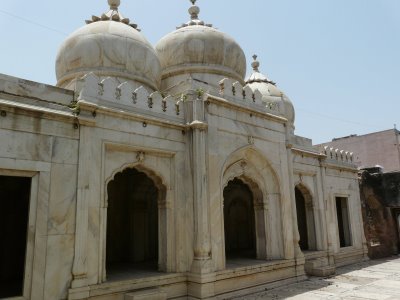

Moti Masjid

Marble and granite gravestones near Moti Masjid

Mehrauli Proper

Mehrauli, being bigger than most urban villages (which usually consist of a set of narrow thoroughfares running through them), has a main road going through it, on both sides of which the village extends. To the north, this road enters the village at the edge of Lal Kot’s walls, where the mid-16th c. tomb of Adham Khan is located.

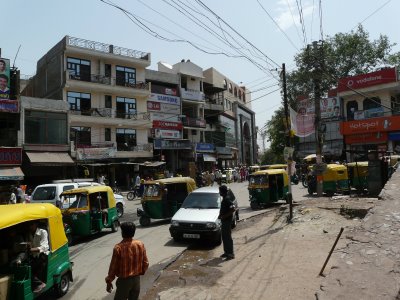

Looking towards Mehrauli from Adham Khan’s tomb


Adham Khan’s tomb from Mehrauli’s main street


Adham Khan’s tomb is the sixth octagonal tomb in Delhi, and while it has stylistic similarities with the five earlier tombs, it is different in many ways, and those earlier five are much closer to each other stylistically than this one is. Below is a brief look at how.


Comparing Adham Khan and Isa Khan’s tomb

To compare Adham Khan’s tomb with the earlier octagonal tombs, I’m considering Isa Khan’s tomb to be representative of the earlier tombs, even though those had some differences between them. Isa Khan’s tomb was built in 1547, and Adham Khan’s just a few years later in 1562. The latter tomb was built during the Mughal ruler Akbar’s rule, and Isa Khan’s during the time that Akbar’s father Humayun had lost the fledgling Mughal empire to Sher Shah, which was a 15 year interruption to the powerful Mughal dynasty.

Even though these tombs were built so close together chronologically, Adham Khan’s tomb is a deviation from earlier octagonal tombs, though it seems like it’s builders still wanted it to look like it was in the tradition of those earlier octagonal tombs. Maybe the change in regime meant a change in the available pool of builders, and the new ones did not have the same design and construction tradition and knowledge as the previous builders, or the designers and patrons just wanted to try something, like Monty Python, a little different. A good subject to research for a future Dilli Darshan Debriefing post!

From the facades of the two tombs, what becomes evident is: the missing chattris (cupolas) on the roof of Adham Khan’s tomb; the missing bracketed chajja (overhang) over Adham Khan’s arches; the replacing of heavily battered buttresses at the corners Isa Khan’s tomb with engaged octagonal columns at the corner of Adham Khan’s tomb; the more uniform arch layout in Adham Khan’s tomb; the plainer decorative treatment on Adham Khan’s facade; the elongated proportions of Adham Khan’s tomb versus the more squat proportions of Isa Khan’s (which results in the drum below the main dome becoming visible in Adham Khan’s tomb); the difference in scale, with Adham Khan’s tomb seeming overall larger than Isa Khan’s, though I haven’t verified this yet (this is not that evident in the images because there is no one standing near Isa Khan’s tomb for scale).

Adham Khan’s tomb facade


Isa Khan’s facade



Adham Khan


Isa Khan

When looking closer at the facades of the two tombs, the difference in corner treatment becomes more prominent. The heavy batter of Isa Khan’s large corner buttresses is replaced by engaged octagonal columns in Adham Khan that, unlike the butteresses, do not seem to be carrying any structural load, and are there just to frame the facade. These octagonal columns do however form a more continuous vertical element with the small turrets (called guldastas – literally bouquets) that cap the eight corners of these tombs. In Isa Khan’s tomb the bracketed chajja (overhang) visually separates the buttress from the turret.

Facade close up of Adham Khan

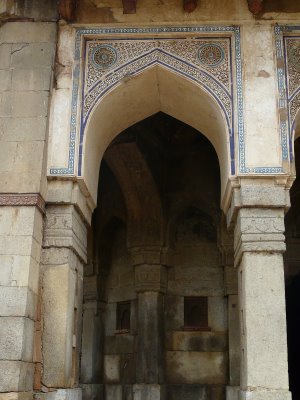

Facade close up of Isa Khan

Difference in decorative treatment. The austerity of Adham Khan’s tomb resembles that of a Tughlaq tomb, but without any of the wall batter.

Adham Khan


Isa Khan

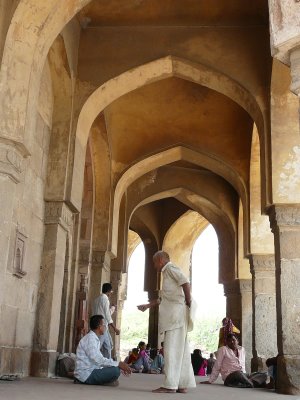

The images below, of the tomb’s outer walkways and the doorways to the inner chamber, depict what I think is one of the main distinguishing features between the two tombs. The decorative treatment as well as the placement of structural components in Isa Khan’s tomb have a dynamic and sculptural quality to them which make the tomb seem much more three dimensional and opulent, from a distance as well as close-up.

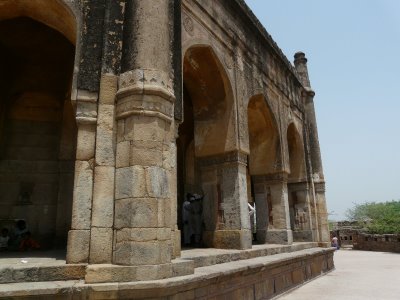

Adham Khan


Isa Khan

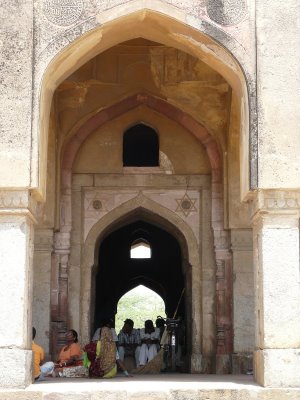

Adham Khan


Isa Khan

For the interior, I used an image from Muhammad Shah’s tomb instead of Isa Khan’s, since the latter is very dark inside and details are difficult to capture on camera. The interiors are quite similar between the two tombs (Adham Khan’s and Muhammad Shah’s), but again there is a lack of vibrancy in Adham Khan’s tomb, similar to the difference in outside treatment. Structurally, Adham Khan’s tomb has a second, 32-sided drum below the dome, which Muhammad Shah’s lacks.

Adham Khan


Muhammad Shah

All in all, I would say that the main difference between Adham Khan’s tomb and the earlier octagonal tombs, apart from scale and proportion, is a lack of vibrancy and sculptural quality when it comes to Adham Khan’s tomb. This is evident when looking at the tomb from afar (due to the missing chattris and chajjas, uniformity of arches, subdued ornamentation and lack of battered buttresses) as well as close up (due to the less dynamic ornamentation and placement of structural components). The more intimate scale of earlier tombs also adds to their sense of dynamism.

This lack of vibrancy and dynamism in Adham Khan’s tomb might partly be a result of different or “improved” structural techniques used in the tomb, which allowed for a taller structure and elimination of the need for buttresses, leading to a neater, more vertical structure, which also had the effect of making the building more plain.

All this while the latter and earlier tombs still have so much in common!


The Rest of Mehrauli Proper

Now back to exploring the heart of Mehrauli. Chaumachi Khan’s tomb (16th c.) is a Mughal tomb with a little bit of open space around it. Modern buildings in Mehrauli are often more robust than at other urban villages, indicating the larger amount of space available here.

Chaumachi Khan’s tomb in it’s raised setting

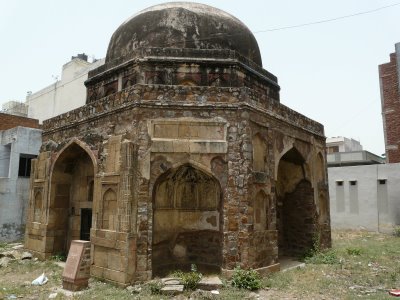

Chaumachi Khan’s tomb




The tomb with a small turret visible behind it. This would have been a corner of the enclosing wall of the tomb. The wall has obviously been torn down and the large residential building on the right built in it’s place, but the turret was spared for some reason

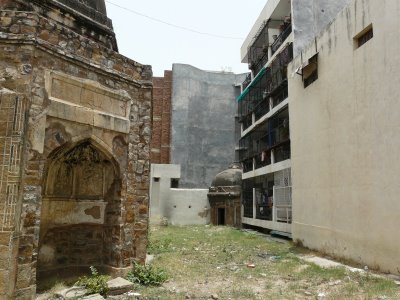

Corner turret. The building behind it seems to have been built in a way that avoids the turret

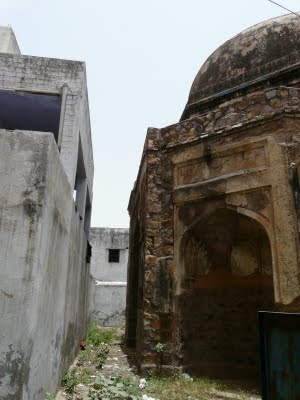

On the other side, the buildings come much closer, encroaching upon the space within the erstwhile enclosure, so there are no turrets

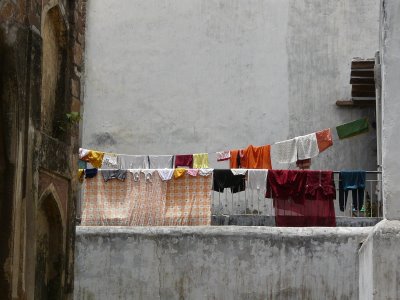

Clothes drying near Chaumachi Khan’s tomb



Hijron ka Khanqah is a small enclosed courtyard on Mehrauli’s main road, which contains many graves. The wall mosque of the enclosure dates back to the Lodhi-era, while the other rooms around the courtyard seem to be Mughal.

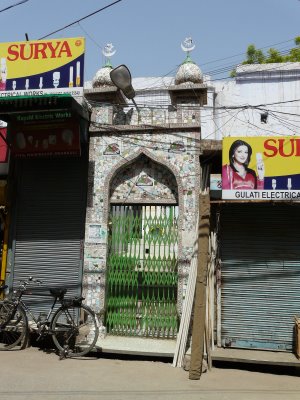

Hijron ka Khanqah entrance from the main road, either modern or much altered

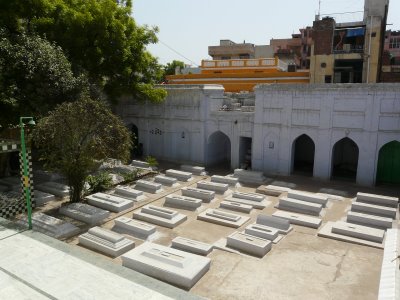

Hijron ka Khanqah with wall mosque


Hijron ka Khanqah surrounding rooms

The Lodhi-era tomb below is on the main road, and was converted into a government medical dispensary. From the architecture of the retrofit, the conversion seems to have taken place either during the British period or soon after it. A marble tablet embedded into the compound wall of this structure commemorates local soldiers who fought in World War I, implying that the building was in use (either as dispensary or otherwise) during British times.

Lodhi tomb/dispensary

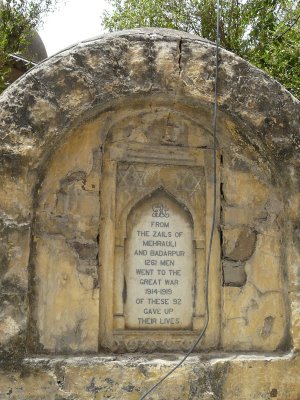

Tablet on compound wall of dispensary

Haveli entrance, Mughal


Tomb, Mughal


Tomb, Mughal, now used partly as a convenience store


Tomb, Mughal

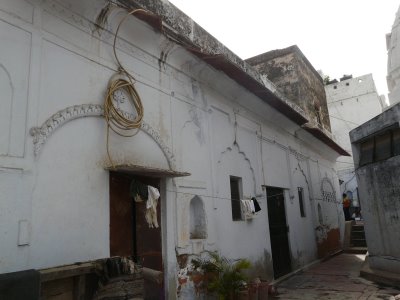

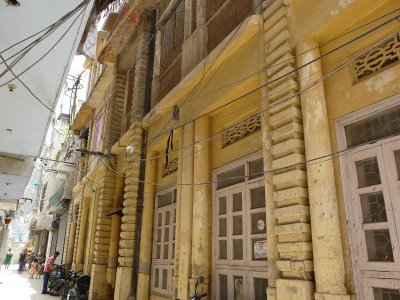

House in Mehrauli, with a combination of colonial and “desi art deco” features

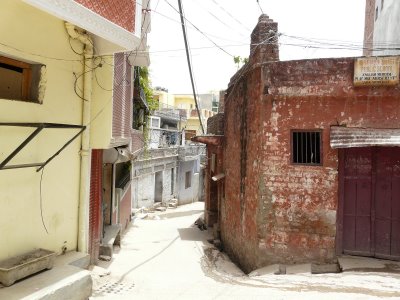

Mehrauli streetscape

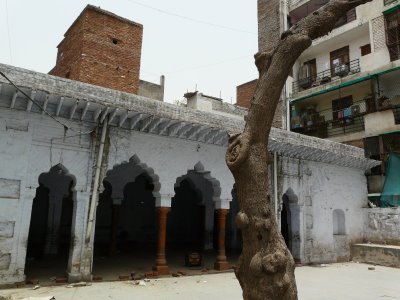

Dalan in Mehrauli, now used as a community gathering place


Pavilion tomb near the edge of Mehrauli

Buildings grow smaller and the scene turns more “rural” as we approach the edge of Mehrauli, and the situation at the edge itself is identical to what the landscape would be like in a village. In this way, Mehrauli repeats what happens in most cities and towns in India, which have urbanized cores that turn rural at the edges before giving way to open land. Of course this is an overly simplified model and the reality is much more varied, but this basic model holds true in most cases.

Fragment of an old wall at the edge of Mehrauli


The “rural” edge of Mehrauli visible behind the gathered kids



North of Mehrauli


The reason why Mehrauli has a “rural edge” (as discussed above) that other urban villages do not, is because Mehrauli is surrounded to the north and north-west by a large forested area known as Sanjay Van, and to the south-west by open land. Therefore, while other urban villages have the neighborhoods of “planned” Delhi at their borders, Mehrauli has open land, which allows it a more ambiguous edge.

Sanjay Van, the forest land north of Mehrauli, also hides many historic structures within it. A path from the village center leads to a 13th c. idgah that was built outside the fortifications of Lal Kot, for large prayer gatherings by Lal Kot residents. This idgah, like other idgahs in Delhi, is a tall, long wall with multiple arched niches and an open space in front of it.

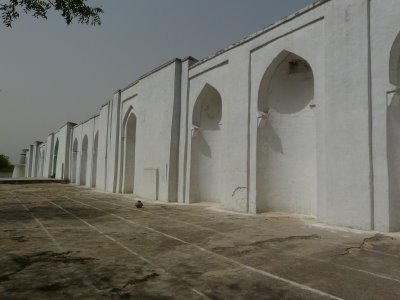

Lal Kot/Mehrauli’s Idgah

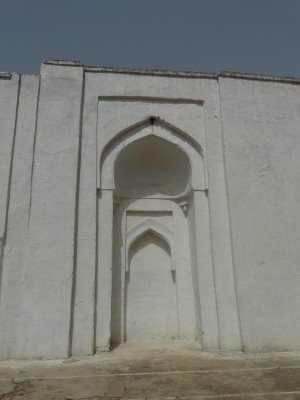

The central mihrab of the idgah


Idgah side niche


Idgah corner turret

North of the idgah, in the middle of the forest is a grave platform, under which is said to be the chillah (place of meditation) of Baba Farid, successor to Bakhtiyar Kaki and predecessor to Hazrat Nizamuddin in the Chisti order of Sufi saints. The chillah is in a small cave under the large, multi-leveled grave platform. The graves themselves are now covered with multi-colored tiles.

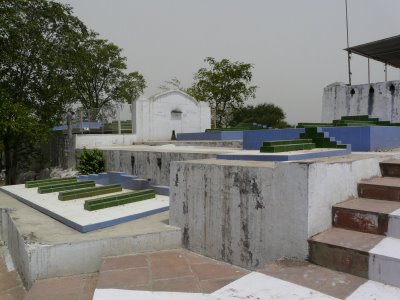

Grave platform above Baba Farid’s chillah




Baba Farid’s chillah



Further on from the chillah are the ruins of Lal Kot’s walls, with some more graves strewn about the landscape near the walls.

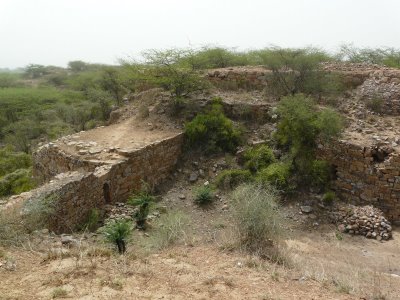

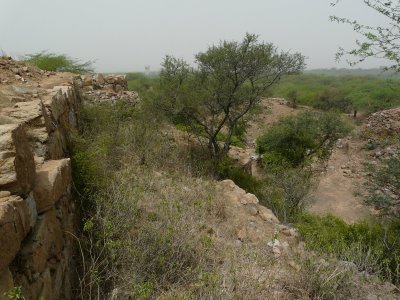

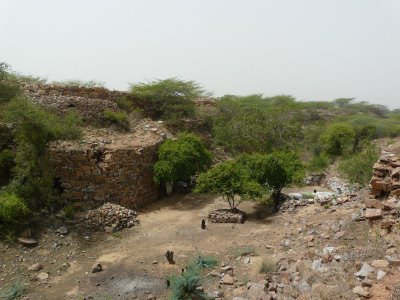

Lal Kot fortifications







Also north of Mehrauli, within the walls of Lal Kot, is a small urban settlement near the Jog Maya Mandir, with some 19th c. buildings around it, like the one below.

Building adjacent to Jog Maya Mandir

South Mehrauli

Jahaz Mahal, which lies on that one main road through Mehrauli I wrote about earlier, marks the beginning of what I’ve called “south Mehrauli” here. There are various historic structures in this area, but the village is expanding (or has expanded some time ago) into this area towards Andheria Morh (where Mehrauli and it’s main road re-link with Delhi), which I think is a bad idea because this area is contiguous with and can easily be incorporated within the Mehrauli Archaeological Park, which I talk about later in this post.

Jahaz Mahal is a 15th c. structure built on the banks of Hauz Shamsi, a large 13th c. tank at the southern end of Mehrauli. The tank is now a quarter of it’s original size, and unfortunately extremely filthy at the edges. Jahaz Mahal must have been used as some kind of pleasure pavilion.

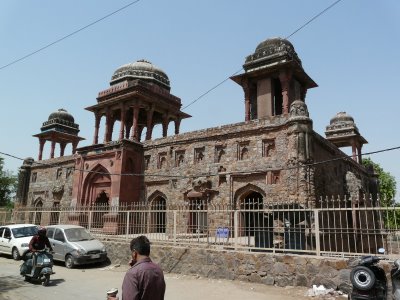

Jahaz Mahal from Mehrauli’s main road


Jahaz Mahal

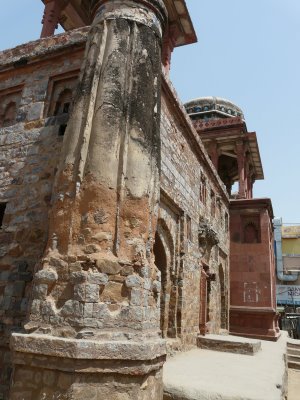

Corner turret


Jahaz Mahal courtyard






Courtyard masonry detail


Grave pavilion (15th c.) near Jahaz Mahal


15th c. structure (mosque?) near Jahaz Mahal

This 14th c. pavilion was once at the center of the Hauz Shamsi tank, but now that the size of the tank has been reduced, is on one of it’s banks


Hauz Shamsi pavilion

Jharna (which means “stream” or “waterfall”) is a small early-18th c. and later Mughal pleasure garden/pavilion compound, through which overflow water from Hauz Shamsi used to pass.

Jharna







Sohan Burj is a 15th c. Lodhi-era building with an attached wall mosque. The building could have been used as a madrasa or meeting hall. The building looks very much like a Lodhi mosque, but of course is facing the wrong direction to be a mosque, and the adjoining wall mosque faces the correct direction (west).

Sohan Burj with the (now shaded) wall mosque to the left

Sohan Burj

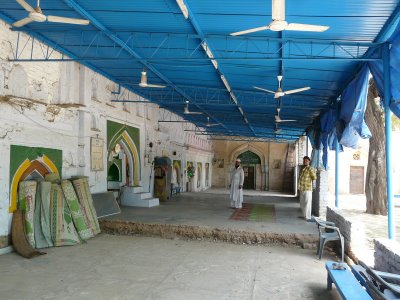

Wall mosque adjoining Sohan Burj, now made a little more comfortable

East entrance gateway to the Sohan Burj compound

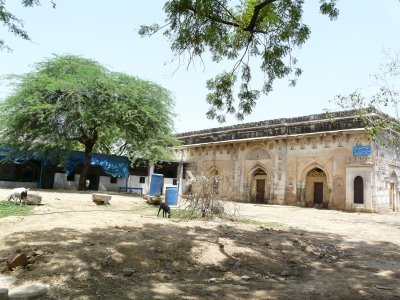

Tombs and mosques scattered to the east of Sohan Burj, now among shanties

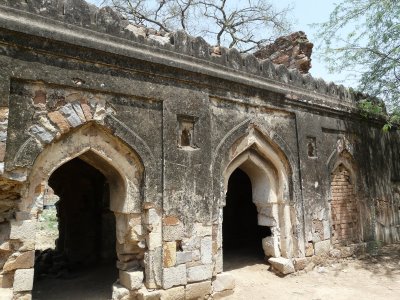

A Lodhi-ear wall mosque with huge corner turrets, now encroached upon and altered to create an enclosed mosque

Remains of an old building close to where Mehrauli’s main road ends at Andheria Morh to the south, with a leechi seller in the foreground

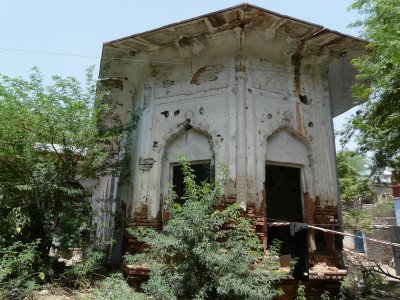

An old building (the ground floor structure) amidst new construction

Mehrauli Archeological Park

This archaeological park borders the entire eastern edge of Mehrauli, and is a really good idea. There are plans to improve the park, and I really hope they do that well. It contains many scattered monuments, and some of them are extremely interesting and attractive. Right now the park is overgrown with keekar trees, which I guess are charming in their own way, but really need to be replaced with a more diverse set of trees.

Madhi Masjid (15th c.), one of the many mosques in the park, is well preserved and quite unique. It has a grand entrance gateway with steps leading up to the gateway, a large courtyard beyond, and a beautifully decorated wall-mosque style qibla wall, but with rooms on either side of the open-air mihrab.

Madhi Masjid entrance gateway

Entrance gateway detail

Madhi Masjid courtyard with wall-mosque style qibla wall beyond

Mihrab and side rooms

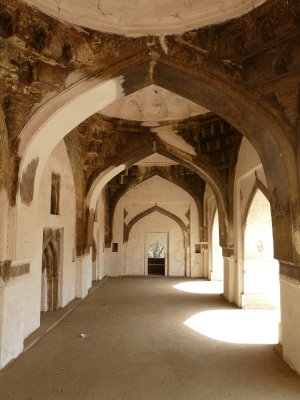

Room interior

Jamali Kamali (mid 16th c.) is the best known historic building in the park, but I didn’t like it as much as the other mosques. The stylistic similarities between this mosque and the slightly earlier Moth-ki-Masjid and slightly later Qila-i-Kohna mosque (among others) are obvious, but both those other mosques as well, I feel, are nicer than this one.

Jamali Kamali is also famous for a very well preserved tomb interior next to the mosque, which is kept locked and only opened by a caretaker, who I’m uncertain was in a bad mood because I didn’t tip him for showing me the tomb or because it was just a very hot day out. In retrospect, I should have tipped him!

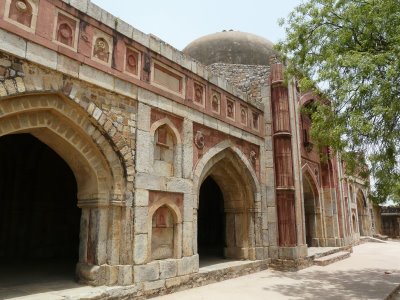

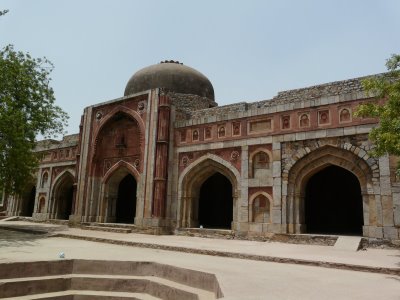

Jamali Kamali mosque

Mosque courtyard from interior

Mosque interior

Jamali Kamali tomb, in an enclosure adjacent to the mosque

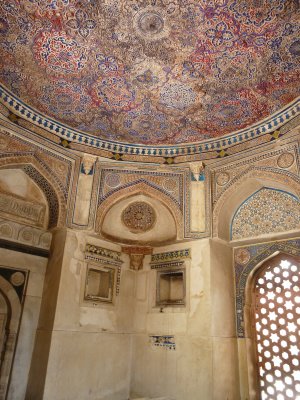

Tomb interior

A subsidiary enclosure to the tomb enclosure contains multiple graves

Entrance gateway to a compound near the mosque

Rajon ki Baoli (early 16th c.) is a beautiful baoli (stepped well) in the park, and has an attached mosque which might be my favorite in Delhi. It is a small, intimate mosque, with beautifully etched plaster work. I usually prefer stone or inlay to etched plaster, but the effect on this mosque is very nice!

Rajon ki Baoli’s baoli

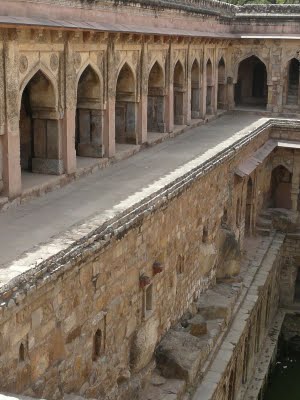

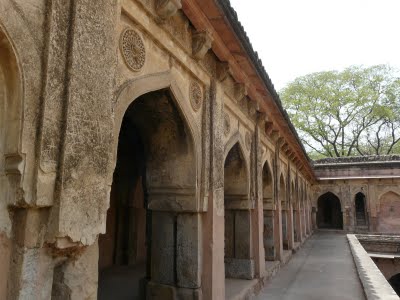

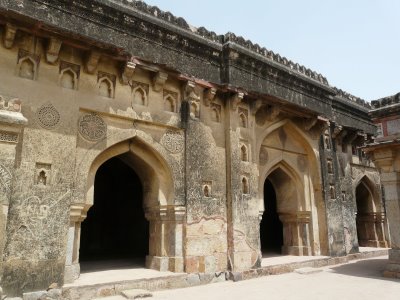

Arcade around the baoli

View of mosque and pavilion tomb from arcade

Arcade interior

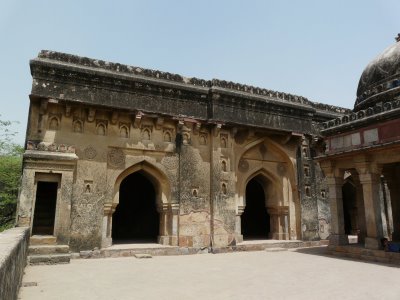

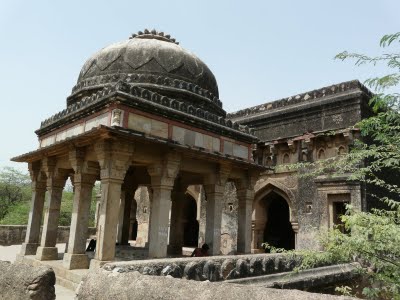

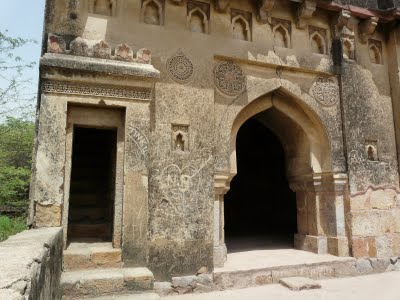

Tomb and mosque attached to Rajon ki Baoli

Rajon ki Baoli mosque

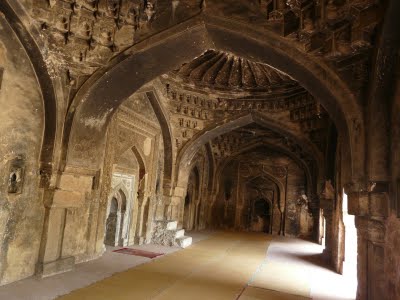

Mosque interior

Tomb and mosque with gateway in front, and the edge of the baoli visible on the lower right corner

Tomb, mosque and gateway, with the outer wall of the baoli arcade on the right

Well of baoli with semi-circular walkway around it

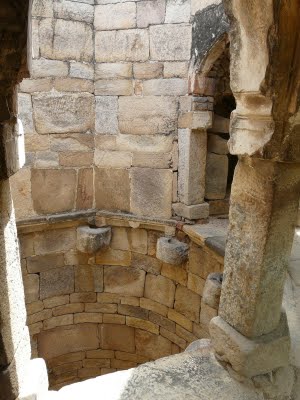

Baoli well

Baoli well with walkway, and arcade outer wall from the outside

Bagichi ki Masjid (early 16th c.) is an enclosed wall mosque in the park, with a small entrance gateway and large corner turrets. Many of the mosques in the park are “occupied”, i.e. are being used as residences-cum-mosques, and there is a dispute between the Wakf board (which oversees mosques and other Islamic structures) and the ASI (Archaeological Survey of India) over use of and rights to these mosques. It will be interesting to see what happens to the mosques in the park, since the ASI is planning an overhaul of the park with the 2010 Commonwealth Games in mind.

For my part, I entered this mosque, which from the photos and text of my guidebook appeared deserted, and was soon confronted by a hoard of boys of various ages (say from 8 to 18) who very sincerely told me that I could not take photographs because this is Wakf land, and would not listen to my arguments that it was not and that this was an “open” public mosque. They called an adult on their mobile phone, who also reiterated that I could not take any photos etc etc, so I had to leave without a detailed look at the structure, though I got in some wide shots of the place before all this happened.

Bagichi ki Masjid corner turret and entrance gateway

Bagichi ki Masjid entrance gateway

Bagichi ki Masjid courtyard and qibla wall

Central mihrab and side niches

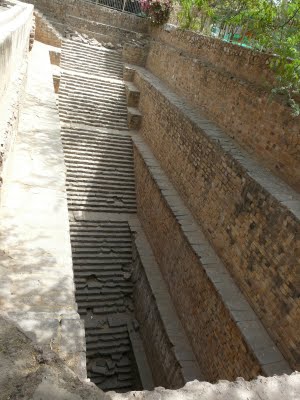

Gandhak ki Baoli (13th c.) is another baoli in the park, located right at the edge of Mehrauli village

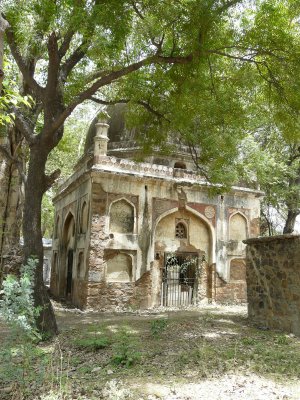

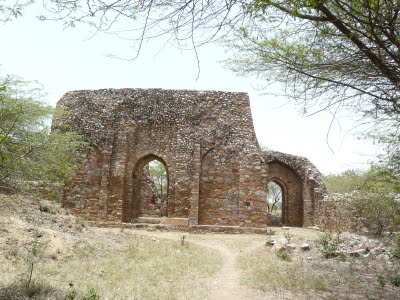

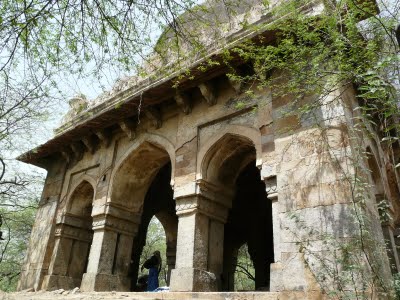

15th c. tomb in the park

15th c. pavilion tomb and grave platform

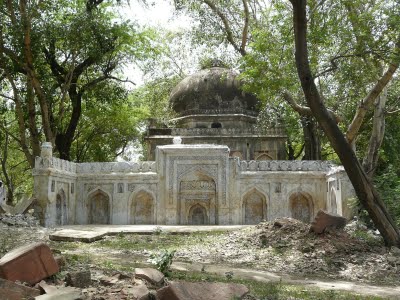

16th c. tomb and wall mosque

An oddly shaped pavilion (19th c.), near an old (now dry) stream

Entrance to a 16th c. tomb and wall mosque enclosure

Tomb with wall mosque on the right

Wall mosque in enclosure

I’ve wanted to visit Balban’s tomb (13th c.) from my undergrad days in architecture, when I read that it was considered to be the first building in India with true arches. The structure is very ruined, oddly shaped, and most likely has been heavily restored, so some of the fun of discovery was lost, but it was good to finally see the structure!

Balban’s tomb

“Inside” Balban’s tomb

Side grave in Balban’s tomb

Entrance to Balban’s tomb. This side has a bracketed opening, but the other had a true arch which, like most of the arches in this structure, seemed much restored

Extensive ruins near Balban’s tomb, probably Mughal

My last stop for this Mehrauli post is Dilkusha, the “country house” of Thomas Metcalf at Mehrauli. Metcalf worked for the East India Company, was an agent at the Mughal court, and an important figure in Delhi society during the first half of the 19th c. By that time the Mughals were more or less puppet rulers under the British, so Metcalf would have been a powerful figure. His main residence was north of Shahjahanabad, and he moved to Dilhusha whenever the Mughal royal family moved from Shahjahanabad to Mehrauli.

The grounds and gardens of Dilkusha are extensive, and at the center of it all is the main house, which was constructed around the 16th c. tomb of Quli Khan (brother of Adham Khan from earlier in this post). Metcalf bought the tomb and built around it to construct his house, and also built other strucutres close by. Metcalf’s house seems to have been mostly demolished and the original tomb is now exposed. The follies (readymade, fake ruins) strewn around Dilkusha’s grounds are famous, and extend all the way from Jamali Kamali to the Qutb Minar.

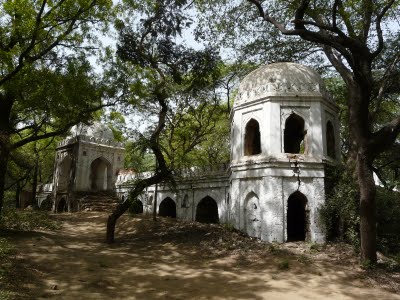

One of Metcalf’s follies overlooking Jamali Kamali. This part of the archaeological park has been landscaped, though grass is not the most ecological way of doing that

A bridge/causeway leading to Dilkusha

Quli Khan’s tomb/Dilkusha, with the Qutb Minar in the background. The semi-circular arches in front of the tomb’s base are British (and would be part of Metcalf’s house), and can be contrasted with the pointed archs of the original tomb.

Quli Khan’s tomb/Dilkusha

Tomb detail

Ruins of Metcalf’s house with the tomb in the background

A view towards the (erstwhile) formal gardens around the house

An outhouse or boathouse

Parts of Hindu temples (from the 12th. c and before) were still being used as masonry during the construction of Metcalf’s buildings!

Chaumukha Darwaza, which was either one of the follies, or a gateway to Lal Kot (it lies on a ruined stretch of the fortifications), or a Tughlaq structure

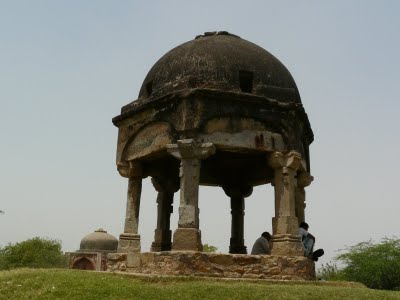

Another, spiralling, folly. This is the structure visible from in front of the parking lot of the Qutb Minar complex

More folly

This is a really interesting set of ruins near Metcalf’s house. They are British, and lie right next to the Lal Kot walls, below Chaumukha Darwaza. They were probably staff quarters or stables or some such service/auxilarry building
